The VM series is an economic-type VFD that is smaller in size and easier to commission, with flexible parameter adjustment. It delivers a 0–400 Hz output frequency range and 150% overload for 60 seconds.

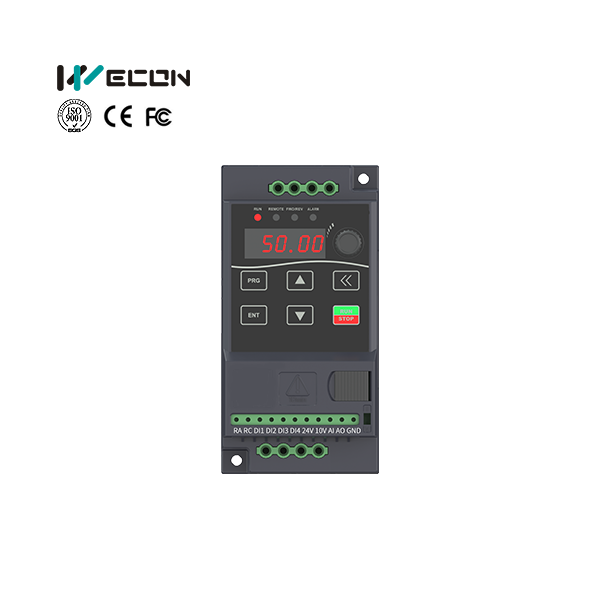

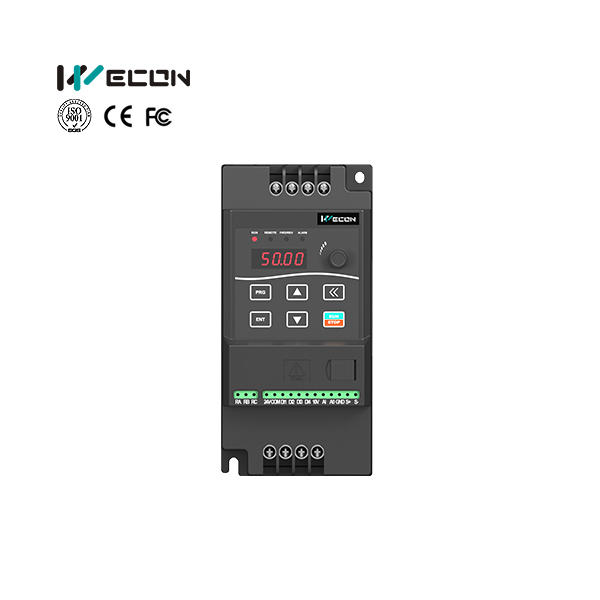

WECON INVERTER
VM Series
Economic-type VFD — smaller size, easier commissioning, 0–400 Hz output and 150% overload for 60 s.
1PH 220V 0.75–2.2 kW3PH 380V 0.75–7.5 kW
Specifications
| Single-phase | 220V, 0.75–2.2 kW |
|---|---|
| Three-phase | 380V, 0.75–7.5 kW |
| Output freq. | 0–400 Hz |
| Overload | 150% / 60 s |
Key Features
- Compact economic design
- Easy commissioning
- 0–400 Hz output
- 150% overload for 60 s
- Flexible parameter tuning
Product Highlights
Applications
Pumps & fansConveyorsHVACGeneral machinery
Interested in the VM Series?
Talk to our engineers for pricing, stock and configuration.
